Practical Lighting for the Modern Portrait and Fashion Photographer - Segment 4
Topic One Rembrandt Lighting
One of the most useful skills a portrait photographer can develop is the ability to stop thinking of the key light as simply a piece of equipment and begin thinking of it as a point of view.
A light does not merely “shine on a face.” It sees the face from a particular position.
And the camera sees the face from another position.
That difference is the foundation of understanding the geometry of lighting and the geometry of a person’s face. For this example, we are discussing, “short-lit Rembrandt lighting.”
The technique begins with the subject, not the light.
Here are the Steps to Easily Create this Lighting
Pose the subject first
Turn the head into the position you want for the portrait, then give the subject a fixed point in the room to look toward so that the position can be held comfortably for a minute or two. This is important because once the face moves, all of the relationships between the nose, cheek, light, and camera move with it.
Once the pose is established, leave the camera position temporarily and walk around to the side from which you intend to place the key light.
In the arrangement shown here, that means moving around the subject toward approximately the “4:30 to 5:00 o’clock position”.
Do not look at the subject as the photographer for a moment.
Look at the face as though “you are the key light”.

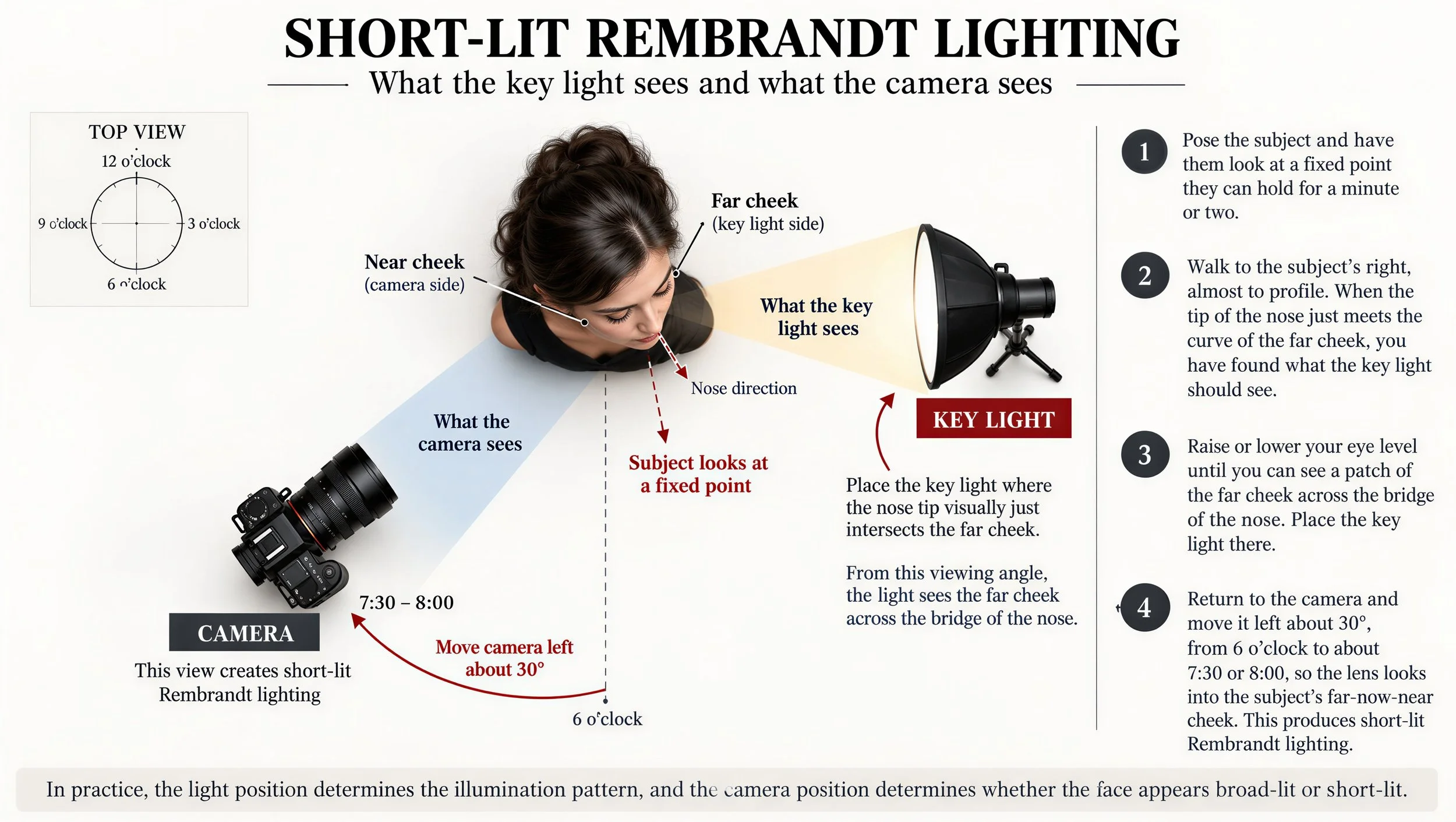

From this bright-side viewpoint, you will view the face in the direction of a near-profile view. As you move around the subject’s face, watch one very specific relationship: where the tip of the nose and the outer edge of the far cheek intersect. (see the diagram below)
At first, too much of the far cheek will be visible. Continue moving around towards the subject’s ear, 3:00 o’clock.
As your viewing angle approaches the correct position, the nose begins to visually overlap that far cheek… The exact placement occurs when:
“The tip of the nose just becomes tangent to, or visually touches, the edge of the far cheek.”
This is the critical reference point.
At that position, the light has a clear path across the bridge of the nose to illuminate a small portion of the far cheek beneath the far eye.

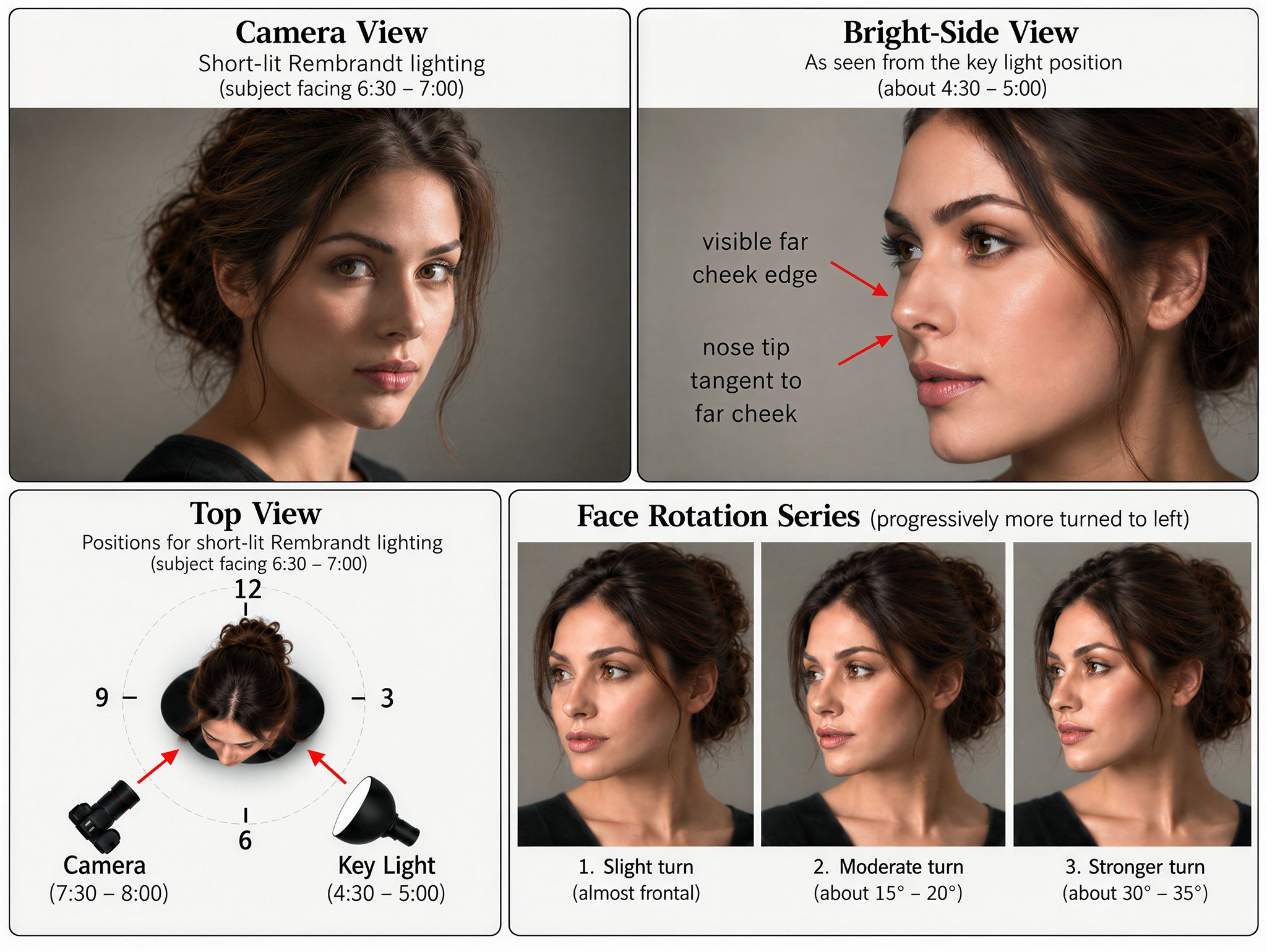

That small illuminated area is what will become the “Rembrandt triangle of light” when seen from the camera position. Camera View
The important distinction: from the key light position, you are looking into the “bright side” of the subject’s face. You are not yet looking at the potential finished portrait. You are actually determining what areas of the face the key light is physically capable of illuminating.
Once that position is found, you will want to place the center of the key light approximately where your eyes were. Then, elevate the light.
Rembrandt lighting is not created only by moving the light around the subject horizontally. The light must also be high enough that the shadow cast by the nose travels downward and connects with the shadow of the cheek, while still allowing a small patch of light to remain beneath the far eye. This method accomplishes exactly that!
So once you have established the horizontal position, observing the tangental relationship between the tip of the nose and the edge of the far cheek, raise or lower the light while carefully observing the face.
You are looking for three things simultaneously:
The near side of the face, where you are looking from, will receive the primary illumination from the key light.
As seen from the camera’s view, the shadow created by the bridge of the subject’s nose, should travel downward toward on the cheek, in the direction of the subjects lips, rather than straight across the face.
And as a result, a distinct triangular patch of light should remain beneath the subject’s far eye.
That triangle should not be huge. It should be controlled, clearly defined, and contained within the cheek area.
While, you won’t see the shadow while standing at the viewpoint of the key light, you can estimate where the shadow will be, by the outline of the nose and cheek intersection.
Now return to the camera - The camera is deliberately placed on the opposite side of the facial axis from the key light, approximately around the “7:30 to 8:00 o’clock position” in this example.
From here, the camera looks predominantly into the “shadow side of the face”.
This is what makes the portrait short lit. That is, the side of the face, being illuminated by the key light, appears to be shorter in width at the camera view, than the shadow side. (see diagram above)
The side of the face closest to the camera is the shadow side, while the narrower side of the face turned away from the camera, receives the dominant key illumination.
Yet because the key light was placed using the nose-to-cheek relationship, some of that light crosses the bridge of the nose and creates the small illuminated triangle beneath the eye on the shadow side.
The result is classic short-lit Rembrandt lighting.
The method can be summarized in a very simple way:
Pose the face first.
Stand where the light should be.
Watch the nose meet the far cheek.
Place the key light there.
Then move the camera to see the shadow side.
Here is a classic example using a Beauty Dish
In this instance, however, look closely at our model, Amanda’s face. (click on the image to see full view) If you are viewing on your phone, just use the pinch-expand technique.You will notice the the Rembrandt triangle is just beginning to emerge. However, the nose shadow has not completely intersected the far cheek shadow. This is often referred to as “Loop Lighting”. So if your model shifts her facial position some you still have excellent light.
Intended as a Personal Self Assignment
The technique, described above is intended for practice, such that you become practiced with placing the main light intentionally, as well as understanding the principle of short lighting. So with practice you will become familiar with the placement of your main or key light, and it will become second nature.
Topic Two
Walking the Light
In the image above, we have a simple studio set using a large 6 foot light source. Aside from being very forgiving in the sense of producing soft lighting, notice that the light is placed perpendicular to the backdrop and not pointing directly at our model. Also, that this large light source is evenly illuminating the set. Notice also how the backdrop is being illuminated with this light source and the gradual fall-off of light across the scene. What may not be obvious is where we might place our model in the area of light that the large source produces.
Let’s Take a Closer Look
What lighting gear will allow us to approach creating this set in a small space and moderate budget?
The Godox AD200 Pro II $349
The Godox AD200 Pro II is a very versatile flash unit, allowing bare bulb, LED modeling lights, direct fresnel flash, 200 Watt-Sec of power and easy mounting to a light stand. For reference, this is approximately 2 & 1/2 times the light output of a traditional speed light.
NEEWER 71"/180cm Parabolic Reflective Umbrella Photography w/ White Interior $82.00
Kupo Light-Stand with Wheels $154.99
Why am I showing a very sturdy fully adjustable stand with wheels? Over the many years of my experience with photography, I have purchased several light stands. The inexpensive ones tend to fall apart over time due to lower build quality.
Aputure LightDome Mini II $67.00
We will return to the above circular Bowens Mount Soft-Boz as we move through this section.
Combining Elements
Assembling the Lighting Gear Diagram 1
Lighting Assembled Diagram 2
The Portrait Lighting Result Pose 1
Model Pose 2
Regarding the topic of “Walking the Light,” the idea is based on the distribution of highlight-shadow ratios, which occur when using a large light source in comparison to the subject size. If you subject is placed at the back side of the light source and the light source is perpendicular to the backdrop, the subject will be illuminated by the entire light source and the result will be softly illuminated with a gradual fall-off to shadows, as seen in both model images above.
Lighting gear as Seen Above - Diagrams 1 and 2
Diagram 1, depicts the use of a Kupo Light Stand with wheels, a Godox AD200 Pro II and a Newer or Godox Umbrella Style Soft-Box, along with the needed flash trigger, Godox X3 touch-screen. The parts ar shown individually.
Diagram 2, depicts the components as they would be assembled. Notice that the flash unit is pointing inside the soft-box, bare bulb, and that there is an umbrella shaft that attaches to the swivel mount of the Godox AD200 Pro II. The Godox AD200 Pro II has an output of 200 W-seconds. While this is about 2.5 X the output of a standard Speed-Light, when illuminating the large white material of a 6 ft soft-box, the resulting light at the subject is attenuated by the large area of the front diffuser. It is perfectly adequate for a small studio space. For larger studios, the Godox AD400 Pro II would provide twice the light value at the subject.
Exploring the Subject Positions, Pose 1 and Pose 2 Above
In both poses, our model’s face is receiving short lighting. That is the camera is looking into the shadow side of the subject’s face. Pose 1, however, has her torso turned towards the light source, Digram 1. While this works well for illuminating the black satin dress, the body posture, while attractive, may not be considered as elegant as pose 2. Pose 2, has our model’s body turned away from the light source and her face gently turned back towards the light source. As well, her feet are crossed. This is an easy to accomplish pose adjustment. And in my opinion brings elegance to the portrait.
Putting the Pieces Together in a Studio
Setting the Stage and Observing the Technique
Walking the Light — Mastering Contrast with Economical Equipment
Beautiful portrait lighting is not necessarily the result of expensive equipment. It comes from understanding how light behaves and how its position relative to the subject determines the quality, direction, and contrast of illumination.
For the above diagram, we use a 71-inch Neewer umbrella soft-box, a compact Godox AD200Pro II bare-bulb flash unit, and a durable Kupo rolling C-stand. This relatively economical combination provides a large, soft light source with the flexibility and reliability needed for professional portraiture. Pricing as presented above, totaling $586.00
With the umbrella stationary, our model begins at Position A, aligned with the rear edge of its six-foot diameter. She then walks forward in four 18-inch increments, maintaining the same pose and distance from the light's diffusion plane. As she progresses through Positions B, C, D, and E, the soft wraparound illumination gradually gives way to stronger facial modeling, deeper shadows, and increasingly dramatic contrast, approaching split lighting at the final position.
The five portraits illustrate how dramatically we can change the character of light without changing the equipment, flash power, or camera settings.
An equally practical alternative is to keep the subject stationary and roll the light forward or backward on the Kupo stand. Its smooth-rolling casters make precise repositioning easy, while its durable construction represents a worthwhile long-term investment.
If the light is stationary, of course your model will be walking closer to you, as seen in the image above. You will need to move back proportionally to keep your model’s face the same relative size in your camera frame. If your model is stationary, and you move the light forward and back for the lighting ration you prefer. Your camera should be on a tripod to maintain the same composition, as you move the light. Of course, your final composition and lighting ratio will depend on your preferences.
The lesson is simple: Master the use and positioning of your light(s) in reference to your subject. And experiment frequently with self assignments.
This Blog series is intended to provide you the reader with valuable information about lighting and styling your images.
Topic 3 - Specular Highlights
The Secret of Specular Highlights
Please feel free to post comments and or ask questions and I will do my best to provide additional information. David Lloyd
